Analog/Digital Receiver
1981

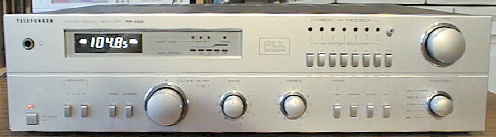

The RR200 was the 'better' offering in the Silver Series. The most important change is the digital frequency display, compared to the RR100's analog scale. The tuning is however still analog with the display just being a frequency counter, so the tuner section could be called a 'hybrid' construction.

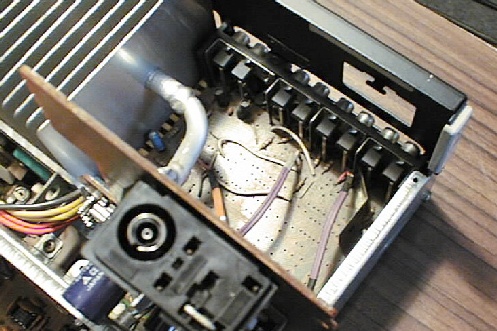

The RR200's amplifier section shared a lot of common features with the RA200. The final stage is the same discrete, liquid-cooled solution (however with a slightly smaller output power). Even the input board is the same, shown in the photo above. The RR200 however does not use semiconductor switches, so only the sockets and the phono preamplifier's parts are populated. Instead, shielded cables carry the signals to the input selector switch at the front. A closer look reveals that the socket used for the RA200's tuner input is populated but not used, probably because all sockets form a monolithic block.

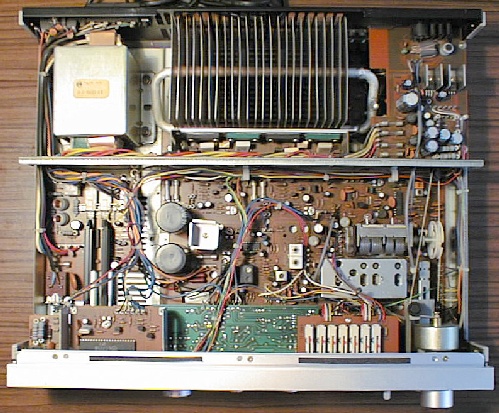

A closer look onto the tuning section. As said, tuning is still analog as with the RR100. A difference is the tuning principle in the FM section: Varicaps instead of variable capacitors. This is necessary to allow preprogrammable stations without the horrendous mechanical overhead you may find in an old car radio or 60er-vintage TV: a set of pots, one for each station, plus an additional pot on the variable capacitor's axis. A set of switches selects among those n+1 pots. Given that digital synthesizers and microprocessors were already available in the early 80s (and used in the RT200, RT300, and MT1), this construction principle looks somehow like an anachronism (it was rather popular in the 70s).
2x60 Watts RMS, FM/AM (AM MW only), 2 pairs of speakers (clamps and DIN connectors), varicap(FM)/variable capacitor(AM) tuning, 7 presettable FM stations, digital frequency display, FM automatic fine tuning switchable, muting, high/low-pass filter, loudness, LED field strength indicator, exact tuning indicator.

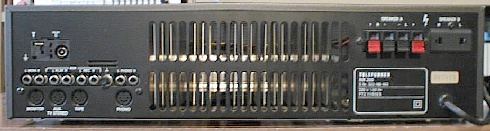

Magnetic phono/Aux/Monitor (DIN and Cinch), Tape (DIN only), 4 x speaker (DIN plugs resp. clamps), antenna (75 Ohms coax or 240 Ohms symmetric)
(taken from the user's manual)
| FM Receiver Part | |
|---|---|
| Frequency Range: | 87.5 - 108 MHz + 7 station keys |
| Circuits: | 11, 4 tunable |
| Sensitivity: | <= 0.8 µV (75 Ohm, Mono) |
| <= 3 µV (75 Ohm, Stereo) | |
| <= 1.6 µV (300 Ohm, Mono) | |
| <= 6 µV (300 Ohm, Stereo) | |
| Limiter Threshold: | <= 1 µV for -3 dB (75 Ohm) |
| Intermediate Frequency: | 10.7 MHz |
| IF Bandwidth: | 150 kHz |
| Selection: | > 60 dB (2 signal method) |
| Mirror Selection: | > 70 dB |
| IF Suppression: | > 80 dB (Ve 10.7 MHz / Ue 95 MHz) |
| __ Suppression: | > 55 dB (30% AM / 40% deviation, |
| with Uant = 1 mV | |
| Capture Ratio: | <= 2dB |
| Pilot Tone Suppression: | > 55 dB |
| Aux Carrier Suppression: | > 85 dB |
| Frequency Range: | 20 Hz ... 16000 Hz (for -3dB) |
| Distortion Factor: | < 0.25% Mono, < 0.4% Stereo |
| at 1 kHz and 40 kHz deviation | |
| Channel Separation: | > 40 dB at 1 kHz |
| > 30 dB at 12.5 kHz | |
| Voltage Ratio: | 65 dB Mono / 63 dB Stereo (eff.) |
| S/N Ratio: | 65 dB Mono / 60 dB Stereo (eff.) |
| Range of Strength Display: | 1 µV - 2 mV |
| AM Receiver Part | |
| Frequency Range: | MW 520 - 1620 kHz (577 - 185 m) |
| Sensitivity: | MW = 9 µV at 600 kHz |
| at 1 kHz, 30% modulation | |
| Circuits: | 8, 2 tunable |
| Intermediate Frequency: | 460 kHz |
| IF Bandwidth: | 6 kHz |
| Selection | >= 50 dB at +/- 9kHz at antenna |
| Mirror Selection: | 55 dB at 600 kHz |
| Voltage Ratio: | 50 dB at Uant = 1 mV, 1 kHz, 30% Mod. |
| Range of Strength Display: | 40 µV - 20 mV |
| Amplifier Part: (with 4 Ohms Load) | |
| Rated Impedance: | 4 Ohms |
| RMS Output Power: | 2 x 60 W |
| Peak Output Power: | 2 x 85 W |
| Distortion Factor: | < 0.1 % at nominal output power |
| Intermodulation Factor: | < 0.1 % at nominal output power, |
| 250 Hz / 8 kHz, 4 : 1 | |
| Transmission Range: | < 6 Hz ... > 50 kHz, +/-1.5 dB |
| Deemphasis TA Magn: | according to DIN 45547 |
| Input Sensitivity/ | |
| Impedance/ | |
| Overload Immunity: | 200 mV / 470 kOhm / 30 dB for tape |
| 200 mV / 470 kOhm / 30 dB for aux. | |
| 195 mV / ~40 kOhm / 30 dB for mon. | |
| 2 mV / 47 kOhm / 34 dB for phono | |
| Output Level at Nominal | |
| Output Power: | 1.0 mV / kOhm at tape rec, 40 kHz distortion |
| 15.5 V at speaker output | |
| 0.31 V at headphone output | |
| Voltage Ratio: | 67 dB at tape, 65 dB at phono |
| (DIN 45 500 eff.) | |
| Channel Separation: | > 50 dB at 1 kHz |
| > 35 dB at 10 kHz | |
| Input Separation: | > 80 dB at 1 kHz |
| > 70 dB at 10 kHz | |
| Tone Controls: | Bass +17 ... -15 dB at 40 Hz |
| Treble +15 ... -12 dB at 15 kHz | |
| Noise Filter: | 7 kHz threshold frequency |
| = 12 dB per oct. | |
| General: | |
| Components: | 19 integrated circuits |
| 40 transistors | |
| 33 diodes | |
| 10 LEDs | |
| Power Requirements: | 220 or 110 volts at 50/60 Hz |
| Fuses: | secondary: 5 x T400 mA, 5 x T2.0 A |
| Supplide Accessories: | wire antenna for AM, dipole for FM |
| Dimensions: | 435 x 111 x 350 mm (W/H/D) |
none known, my RR200's did not show a failure up to now - except for the 'usual' failures like volume/sound pots not sliding cleanly any more and thus making 'noise' during turning...
(taken from the service manual)
| Mechanical Parts | ||
|---|---|---|
| 1 | front plate | 339 132 131 |
| 2 | side part for front plate | 339 232 122 |
| 3 | button guiding (4-fold) | 339 222 142 |
| 4 | button guiding (8-fold) | 339 222 143 |
| 5 | button guiding (mains switch) | 339 222 112 |
| 6 | display window | 339 272 128 |
| 7 | display frame | 339 282 107 |
| 8 | volume knob, upper part | 339 222 130 |
| 9 | volume knob, lower part | 339 222 131 |
| 10 | tuning knob | 339 222 129 |
| 11 | variable knob | 339 222 134 |
| 12 | mains button with rod | 339 202 109 |
| 13 | selector button | 339 222 128 |
| 14 | ornamental ring 30 mm | 339 222 123 |
| 15 | ornamental ring 17 mm | 339 222 124 |
| 16 | push button | 339 222 132 |
| 17 | push button support | 339 917 111 |
| 18 | push button spring | 339 917 110 |
| 21 | housing, upper part | 339 112 106 |
| 22 | housing, rear panel | 339 137 100 |
| 23 | bottom plate | 339 011 108 |
| 24 | foot | 339 062 112 |
| 26 | plug-button f. station tun. | 339 222 146 |
| 27 | filter plate digital disp. | 339 347 108 |
| 28 | dial wheel | 339 737 108 |
| 29 | switch rod | 339 332 111 |
| 30 | tuning shaft | 339 737 117 |
| FM-AM-MPX-Board | ||
| 35 | FM-AM-MPX-board | 339 332 111 |
| C328 | variable capacitor | 339 593 109 |
| C327 | ceramic trimmer 2-10pF | 339 502 133 |
| C329 | ceramic trimmer 4-30pF | 339 502 134 |
| D201-204/301/302 | diode 1S446 | 339 529 316 |
| D205/206/303/352/353 | diode 1S1555 | 339 529 017 |
| D351 | diode 05Z6.8Z | 339 529 318 |
| D401/402/451/452 | diode 05Z7.5U | 339 529 265 |
| D403/404/453/454 | diode 1S1555 | 339 529 017 |
| D405/406/455/456 | diode 1S1588 | 339 529 265 |
| D501 | diode S10VB2 | 339 529 325 |
| FI201/202 | low-pass filter | 339 368 014 |
| CF201 | ceramic filter 10.7 MHz | 339 368 121 |
| CF202 | ceramic filter 10.7 MHz | 339 368 016 |
| CF203 | ceramic filter 450H | 339 368 108 |
| FU401/402/451/452 | fuse T2.5A | 339 570 064 |
| FU551 | fuse T125mA | 339 570 026 |
| IC201 | IC TA7060AP | 339 575 227 |
| IC202 | IC HA12412 | 339 575 228 |
| IC203 | IC TCA4500A | 339 575 284 |
| IC204 | IC NJM4558 | 339 575 087 |
| IC301 | IC LA1245 | 339 575 285 |
| IC302 | IC SP8629 | 339 575 286 |
| L201 | coil 10.7MHz | 339 347 039 |
| L202 | coil 195kHz | 339 367 117 |
| L301 | choke coil 220µH | 339 347 038 |
| L302 | antenna coil MW | 339 347 141 |
| L303 | oscillator coil MW | 339 347 140 |
| L304 | coil 455kHz | 339 367 115 |
| L305 | coil MW | 339 367 114 |
| R219/242 | variable resistor 10kOhm | 339 502 130 |
| R238 | variable resistor 5kOhm | 339 505 014 |
| R314 | variable resistor 20kOhm | 339 505 011 |
| R403/453 | variable resistor 500Ohm | 339 502 021 |
| R424/474 | variable resistor 1kOhm | 339 505 015 |
| R355 | variable resistor 220Ohm | 339 502 131 |
| R360 | variable resistor 330Ohm | 339 502 132 |
| R429/430/479/480 | cement resistor 0.33Ohm/5W | 339 537 109 |
| S301 | selector switch | 339 442 122 |
| T201 | transistor 2SC380 | 339 556 381 |
| T202 | transistor 2SA1015YGR | 339 556 216 |
| T203/204 | transistor 2SC1815Y | 339 556 299 |
| T301/302 | transistor 2SK212 | 339 556 458 |
| T351/352 | transistor 2SC1384 | 339 556 248 |
| T353 | transistor 2SK34 | 339 556 457 |
| T354/411/461 | transistor 2SC1815 | 339 556 292 |
| T401/451 | transistor 2SA798 | 339 556 393 |
| T402/452/460 | transistor 2SA722 | 339 556 383 |
| T403/410/453 | transistor 2SC1328 | 339 556 382 |
| T404/454 | transistor 2SA912 | 339 556 385 |
| T405/455 | transistor 2SC1885 | 339 556 384 |
| T406/456 | transistor 2SC1567 | 339 556 389 |
| T407/457 | transistor 2SA794 | 339 556 388 |
| T408/458 | transistor 2SD854 | 339 556 472 |
| T409/459 | transistor 2SB755 | 339 556 473 |
| T501 | transistor 2SD880 | 339 556 301 |
| 36 | mixer unit FM | 339 337 145 |
| Deemphasis Board | ||
| 37 | deemphasis board, compl. | 339 502 124 |
| DIN sockets plate | 309 679 951 | |
| IC 701 | IC NJM4562 | 339 575 352 |
| IC 702/703 | IC NJM4558 | 339 575 087 |
| L701 | coil | 339 347 047 |
| Potentiometer Board | ||
| 38 | potentiometer board, compl. | 339 502 124 |
| IC801 | IC TL4558PA | 339 575 352 |
| IC802 | IC TL4558P | 339 575 220 |
| R805 | pot. 100kOhm, volume | 339 502 116 |
| R811 | pot. 100kOhm, treble | 339 502 113 |
| R815 | pot. 100kOhm, bass | 339 502 114 |
| S801 | push button | 339 442 123 |
| S802 | push button | 339 442 124 |
| T801/805 | transistor 2SC1815Y | 339 556 299 |
| Power Supply Board | ||
| 39 | power supply board, compl. | 339 337 155 |
| D601/603 | diode 1S1588 | 339 529 265 |
| IC601 | IC HA 12002W | 339 575 287 |
| L401/451 | coil 1.6µH | 339 349 046 |
| FU701 | fuse 2A | 339 570 024 |
| RY601 | relay | 339 360 107 |
| S401 | push button | 339 442 129 |
| S701 | mains switch | 339 440 028 |
| T601 | transistor 2SA1015Y | 339 556 216 |
| Headphones Connector Board | ||
| 40 | phones conn. board, compl. | 339 542 110 |
| B401 | headphones socket | 339 540 145 |
| R436/486 | metox-res. 270Ohms | 309 535 635 |
| Digital Display Board | ||
| 41 | digital display bd., cpl. | 339 337 153 |
| FU851 | digital display | 339 337 144 |
| X651 | crystal 4.0MHz | 339 349 177 |
| D651 | diode 1S1588 | 339 529 265 |
| IC651 | IC LC7258 | 339 575 288 |
| T651 | transistor 2SC1815Y | 339 556 292 |
| T652/653 | transistor 2SA1015Y | 339 556 216 |
| Switch Board Station | ||
| 42 | sw. bd. f. station tuning | 339 442 131 |
| D151 | diode 1S1588 | 339 529 265 |
| S151 | push button | 339 442 125 |
| Station Pre-Selec. Board | ||
| 43 | sta. presel. board | 339 502 125 |
| R151-157 | variable resistor | 339 502 126 |
| LED Display | ||
| 44 | LED display board, compl. | 339 337 143 |
| D901/903/904 | LED SR531D | 339 529 323 |
| D902 | LED SG231D | 339 529 320 |
| D905 | LED LN05202P | 339 529 321 |
| IC901 | IC LB1450 | 339 575 278 |
| IC902 | IC LB1426 | 339 575 279 |
| Mains Part W. Connection | ||
| 45 | mains part w. ant. conn. | 339 337 139 |
| B151 | antenna socket | 309 670 928 |
| D501/502 | diode WO2 | 339 529 176 |
| D503 | diode 05Z12Y | 339 529 328 |
| D504 | diode 05Z5,6Y | 339 529 326 |
| D505 | diode 05Z9,1Z | 339 529 327 |
| D506/507 | diode 05Z18X | 339 529 329 |
| FU501/502 | fuse T315mA | 339 570 017 |
| FU503/504 | fuse T125mA | 339 570 026 |
| IC501 | IC NJM 78M12A | 339 575 289 |
| L151 | choke coil 2.2µH | 339 348 655 |
| L152 | adapter coil 3.3mH | 339 347 045 |
| L153 | symmetrical transformer | 339 312 114 |
| B | loudspeaker socket | 339 540 127 |
| B | clamp socket | 339 550 107 |
| D | LED (mains) | 339 529 323 |
| LT1 | power cable | 339 482 106 |
| TR1 | mains transformer | 339 312 113 |
