TC 750

Device Type

Analog Cassette Deck

Start of Sale

1979

General Description

The TC 750 was the top cassette deck of Telefunken's 1978/79 Hifi line. Its innards are similar to the TC 650 resp. HC 3000, with two important additions:

The mechanical drive controls were replaced with solenoids and an electronic drive control

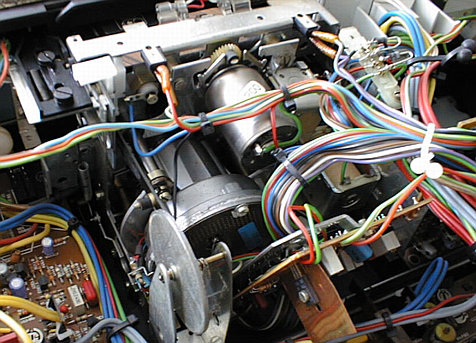

The capstan wheel is directly driven by a motor, eliminating the flywheel and belt.

The electronic drive control also allowed a socket for a remote control. Telefunken's original offering was the FB 750 cable-bound remote control, also used for the later CC 20. The TC 750 however also happily cooperates with the tape control output of the RP 300, if one connects them with a 1:1-connected DIN-7 cable.

The direct drive looks rather large, I've never dared to disassemble one so far, and there hasn't been a need to fix a capstan motor so far. The absence of a belt greatly enhances the reliability of the whole drive.

Features

Electronic Drive Control; HighCOM; Dolby-B compatible; Fe/Cr/FeCr/Metal Tape Support; switchable multiplex filter; automatic record level limiter; mechanical tape counter with memory function; 2 VU meters;

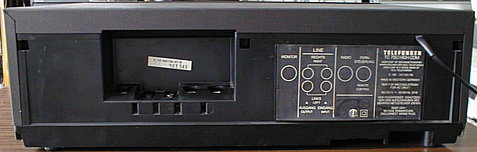

Connectors

Radio/Phono/Tape (DIN); Microphone/Aux (DIN); Line in/out (4xCinch); Headphone (DIN); Remote Control (DIN)

Technical Data

(taken from the user's manual)

Tape Speed: 4.75 cm/s +/- 1 %

Frequency Range: 30-18000 Hz (CrO2)

30-16000 Hz (Fe2O3)

30-18000 Hz (FeCr)

30-18000 Hz (Metal)

Variation of Speed: +/- 0.14 % (REC+PLAY)

+/- 0.1 % (only PLAY)

Distortion Factor <= 3 % (CrO2)

<= 1 % (Fe, FeCr)

S/N Ratio with HIGH COM: 78 dB

Erase Damping: >= 66 dB

Erase Frequency: 86kHz

Reduction of max. High Frequency Level at 10 KHz: <= 12 dB (CrO2)

<= 12 dB (Fe2O3)

<= 10 dB (FeCr)

<= 5 dB (Metal)

L/R Channel Damping: >= 35 dB

Input Sensitivity: <= 0.1 mV / kOhm

Input Impedance: 6 kOhm Radio/Micro

470 kOhm Aux

220 kOhm Line

Output Voltage: 1.2 V

Output Resistance: 10 kOhm Radio

8.2 kOhm Monitor/Line

270 Ohm Headphome

Playback Deemphasis: 3180 µs / 70 µs (CrO2)

3180 µs / 120 µs (Fe2O3)

3180 µs / 120 µs (FeCr)

3180 µs / 70 µs (Metal)

Multiplex Filter: 19 kHz Pilot Tone Suppression switchable

Record Level Supervision switchable

(Limiter)

Semiconductors: 19 Integrated Circuits

57 Transistors (among them 2 FETs)

79 Diodes

6 Zener Diodes

2 Rectifiers

10 LEDs

Mains Voltage: 220/110 Volts

Frequency: 50/60 Hz

Dimensions: 460 x 142 x 346 mm

Common Failures

The TC 750 shares the relatively complex head sleigh mechanics with the CC 20: The solenoid's force is transferred via a couple of sticks and levers, and the bearings' grease hardens over time. It often feels as though the sleigh doesn't move at all, you won't get around removing all old grease from all bearings; the solenoid->sleigh mechanics mustn't provide any mentionable counterforce when you operate it manually. Especially, the sleigh must entirely glide back into the idle position without any outer 'help'.

The TC 750's power supply may also prove problematic (the first thing to check if the deck acts 'funny'): It contains a filter capacitor, rated at 40 volts, which is being operated near to its limits. I had a TC 750 where this cap was shorted. You may consider replacing it with a capacitor with a bit more 'headroom'...

Spare Part Numbers

(taken from the service manual)

ABS 802 349 355 009 Basic Module BS 5829

Position Part No. Designation

BU 301/302/ 309 679 922 cinch socket

1301/1302

BU 803/804 339 541 002 DIN socket, 5 contacts

BU 806 339 540 092 DIN socket, 7 contacts

C 341/804/1341 309 414 662 Al-electr. cap. 22 µF/35 V

C 348/501/1348 309 411 654 Al-electr. cap. 10 µF/35 V

C 349/1349 309 410 657 Al-electr. cap. 4.7 µF/50 V

C 354 309 414 741 Al-electr. cap. 470 µF/50 V

C 356/1356 309 411 674 Al-electr. cap. 22 µF/16 V

C 357/1357 309 410 655 Al-electr. cap. 2.2 µF/50 V

C 359/1359 339 510 021 foil trimmer 8 P/60 P

C 502/504 309 414 737 Al-electr. cap. 2200 µF/40 V

C 503 309 414 774 Al-electr. cap. 2200 µF/25 V

C 804 339 584 069 Al-electr. cap. 100 µF/25 V

C 807/808 309 410 102 Al-electr. cap. 1 µF/50 V

C 1354 309 414 695 Al-electr. cap. 470 µF/25 V

D 800/801/802 309 325 927 diode 1 N 4148

D 803/804 339 525 003 diode BZY 85 C 6 V 8

FU 501 309 627 918 fuse T 800 mA

FU 502 309 625 610 fuse T 1.6 A

GR 501 339 520 046 selen rectifier B 30 C 800 B 2

GR 502 309 320 924 rectifier B 40 C 1500/1000

IC 501 339 575 068 IC UA 7824

IC 503 339 575 069 IC UA 7824

L 301/1301 339 345 458 choke coil BS 7 36 K

L 302/1302 339 345 853 filter coil 85/19 kHz 23 MH

L 801 339 345 950 oscillator coil 85 kHz

R 378/1378 309 509 705 variable resistor 50 KOhm

R 804 339 505 951 variable resistor 2.5 KOhm

R 809 339 509 920 variable resistor 5 KOhm

S 804 339 440 950 chamber switch, record/play,

2+3 contacts

S 807 339 440 952 chamber switch, compl.,

record/play, 6 contacts

T 306/307/ 339 556 224 transistor BC 548 C

1306/1307

T 801 339 556 026 transistor BD 135

T 802 309 001 114 transistor BD 675

ABS 301/1301 349 355 003 HIGH COM Module BS 5335

Position Part No. Designation

C 1 309 411 703 Al-electr. cap. 22 µF/6.3 V

C 2 309 410 634 Al-electr. cap. 4.7 µF/35 V

C 8/11/18 309 412 644 Al-electr. cap. 47 µF/16 V

C 15 309 410 655 Al-electr. cap. 2.2 µF/25 V

C 17/20 309 411 647 Al-electr. cap. 10 µF/16 V

C 19 339 580 114 Ta-electr. cap. 0.22 µF/35 V

C 22 309 413 486 Al-electr. cap. 100 µF/16 V

IC 1 339 575 019 IC U 401 B

IC 2 339 575 020 IC MC 14066 BCP

ABS 821 339 364 982 Output Amplifier Module BS 5355

Position Part No. Designation

C 1/2 309 410 643 Al-electr. cap. 2.2 µF/25 V

C 3 309 411 677 Al-electr. cap. 10 µF/25 V

IC 1 339 335 855 IC MC 1458 CP1

ABS 822 339 330 853 Universal Amplifier Module BS 5309

Position Part No. Designation

C 1/2 309 410 643 Al-electr. cap. 2.2 µF/25 V

C 3 309 411 677 Al-electr. cap. 10 µF/25 V

IC 1 339 335 855 IC MC 1458 CP1

ABS 801 349 355 002 Pre-Amplifier Module BS 5418

Position Part No. Designation

BU 801 339 540 057 DIN socket, 8 contacts

C 3 309 411 677 Al-electr. cap. 10 µF/25 V

C 303/1303 309 411 674 Al-electr. cap. 22 µF/16 V

C 306/1306 309 411 659 Al-electr. cap. 22 µF/25 V

C 308/1308 339 584 096 Al-electr. cap. 100 µF/3 V

C 313/1313 309 410 642 Al-electr. cap. 1 µF/50 V

C 314/1314 309 461 996 Ta-electr. cap. 0.47 µF/35 V

C 1312 309 414 695 Al-electr. cap. 470 µF/25 V

R 326/1326 309 509 735 variable resistor 25 KOhm

S 801 339 440 953 rec/play switch, complete

S 802 339 440 957 push button switch, 2-fold

T 1/2/302/1302 309 001 242 transistor BC 550 C

T 301/1301 309 001 211 transistor BC 550 B

T 303/304/305/ 339 556 224 transistor BC 548 C

306/1303/1304/

1305

IC 504 309 368 105 IC 7818 UC 18 V

ABS 803 339 335 956 Function Selector Module BS 5348

Position Part No. Designation

C 370/376/ 309 410 642 Al-electr. cap. 1 µF/50 V

1370/1376

C 371/377/ 309 411 654 Al-electr. cap. 10 µF/35 V

1371

C 373 309 410 717 Al-electr. cap. 4.7 µF/63 V

C 374 309 411 656 Al-electr. cap. 22 µF/25 V

C 378 309 414 694 Al-electr. cap. 220 µF/25 V

D 310/312/317/ 309 325 927 diode 1 N 4148

811/812/813/

1310

D 311 339 529 138 diode BZX 55 C 2 V 7

D 313/314/315 309 327 022 LED FLV 110 RT

D 316 339 529 105 LED FLV 310 GN

R 393/1393 309 509 401 variable resistor 10 KOhm

R 403 309 504 921 variable resistor 5 KOhm

S 810/813 339 440 954 toggle witch

S 811 339 440 955 toggle witch

S 812 339 440 956 toggle witch

T 310/1310 339 556 087 transistor BC 548 C

T 311 339 556 225 transistor NE 412 S

ABS 807 339 335 958 Motor Control Board Cpl. BS 5524

Position Part No. Designation

C 439 309 410 643 Al-electr. cap. 2.2 µF/25 V

D 3/4/5/6 309 325 951 diode 1 N 4001

IC 431/432 339 575 074 IC NE 532 N

MG 3 339 340 952 playback magnet

MG 4 339 340 953 lateral slide magnet

MG 5 339 340 954 brake magnet

R 449 309 509 047 variable resistor 2.5 Ohm

S 9,13 339 405 951 set of contact springs, 1-pol.

S 10 339 440 962 locking switch, complete

S 12 339 440 961 micro switch

ABS 809 349 355 018 Mechanism Control Module BS 5754

Position Part No. Designation

C 701 309 411 674 Al-electr. cap. 22 µF/16 V

C 702/719 309 411 645 Al-electr. cap. 10 µF/35 V

C 705/709/717/ 309 410 642 Al-electr. cap. 1 µF/50 V

723/725/726

C 706/707/708 309 410 855 Al-electr. cap. 2.2 µF/50 V

C 716 309 410 668 Al-electr. cap. 4.7 µF/35 V

C 721 309 461 917 Ta-electr. cap. 10 µF/16 V

C 741/742 339 580 115 Ta-electr. cap. 0.68 µF/35 V

C 743 309 412 644 Ta-electr. cap. 47 µF/16 V

D 701-720/723/ 309 325 927 Si-diode 1 N 4148 G

725-728/

731-734/

736-739/

742-754/

756-764/

766-769/

772/773

D 741 309 325 951 Si-diode 1 N 4001

D 755 339 525 003 Si-z-diode BZY 85 C 6 V 8

D 771 309 325 057 Si-z-diode BZY 85 C 4 V 7

IC 702/703/ 309 368 144 IC MC 14001 CP

706/708/711

IC 704 339 575 070 IC MC 14011 CP

IC 707 339 575 071 IC MC 14043 BCP

T 701-704/706/ 339 556 224 Si-transistor NPN BC 548 C

708/711/716/

718/719/721

T 707 309 001 114 Si-transistor NPN BC 675

T 709/714/717 339 556 079 Si-transistor NPN BD135/16

T 712 309 001 115 Si-transistor PNP BD 676

T 713 309 001 114 Si-transistor BD 675

ABS 808 339 330 955 Rewind Motor Control Board BS 5775

Position Part No. Designation

C 741/742 339 580 115 Ta-electr. cap. 0.68 µF/35 V

C 743 309 412 644 Al-electr. cap. 47 µF/16 V

D 781/782 309 325 927 Si-diode 1 N 4148

L 701/702 339 345 350 anti-interference choke

T 731/733/734 309 001 024 Si-transistor PNP BD 136/16

T 732/736/737 339 556 079 Si-transistor NPN BD 135/16

T 738 339 556 224 Si-transistor NPN BC 548 C

ABS 811 339 355 858 Push Button Board BS 5756

Position Part No. Designation

339 335 953 push button lear, 6-fold

ABS 812 339 335 955 Heatsink

Position Part No. Designation

IC 502 339 575 072 IC C 7812 SPG, REG

Miscellaneous

Position Part No. Designation

BU 803 339 540 091 headphones socket, complete

FU 1 309 627 912 fuse T 160 mA

FU 2 309 627 901 fuse T 315 mA

HSK 11 339 350 850 R/P head 'sendust'

J 1/2 339 370 951 level meter, yellow

LA 1/2 339 560 079 miniature bulb 12 V 60 mA

LA 3/4 309 621 971 miniature bulb 12 V 80 mA

LE 1 309 695 935 mains cable

LK 2 339 355 950 erasing head

M 1 339 300 954 capstan DC motor

M 2 339 300 951 DC motor

S 1 309 630 994 mains switch, 2 contacts

S 8 339 440 959 push switch memory, 1 contact

R 1/2 339 500 951 double potentionmeter, complete

TR 1 339 310 952 mains transformer EI 78 A

ABS 802	349 355 009	Basic Module BS 5829
Position	Part No.	Designation
BU 301/302/	309 679 922	cinch socket
1301/1302
BU 803/804	339 541 002	DIN socket, 5 contacts
BU 806	339 540 092	DIN socket, 7 contacts
C 341/804/1341	309 414 662	Al-electr. cap. 22 µF/35 V
C 348/501/1348	309 411 654	Al-electr. cap. 10 µF/35 V
C 349/1349	309 410 657	Al-electr. cap. 4.7 µF/50 V
C 354	309 414 741	Al-electr. cap. 470 µF/50 V
C 356/1356	309 411 674	Al-electr. cap. 22 µF/16 V
C 357/1357	309 410 655	Al-electr. cap. 2.2 µF/50 V
C 359/1359	339 510 021	foil trimmer 8 P/60 P
C 502/504	309 414 737	Al-electr. cap. 2200 µF/40 V
C 503	309 414 774	Al-electr. cap. 2200 µF/25 V
C 804	339 584 069	Al-electr. cap. 100 µF/25 V
C 807/808	309 410 102	Al-electr. cap. 1 µF/50 V
C 1354	309 414 695	Al-electr. cap. 470 µF/25 V
D 800/801/802	309 325 927	diode 1 N 4148
D 803/804	339 525 003	diode BZY 85 C 6 V 8
FU 501	309 627 918	fuse T 800 mA
FU 502	309 625 610	fuse T 1.6 A
GR 501	339 520 046	selen rectifier B 30 C 800 B 2
GR 502	309 320 924	rectifier B 40 C 1500/1000
IC 501	339 575 068	IC UA 7824
IC 503	339 575 069	IC UA 7824
L 301/1301	339 345 458	choke coil BS 7 36 K
L 302/1302	339 345 853	filter coil 85/19 kHz 23 MH
L 801	339 345 950	oscillator coil 85 kHz
R 378/1378	309 509 705	variable resistor 50 KOhm
R 804	339 505 951	variable resistor 2.5 KOhm
R 809	339 509 920	variable resistor 5 KOhm
S 804	339 440 950	chamber switch, record/play,
		2+3 contacts
S 807	339 440 952	chamber switch, compl.,
		record/play, 6 contacts
T 306/307/	339 556 224	transistor BC 548 C
1306/1307
T 801	339 556 026	transistor BD 135
T 802	309 001 114	transistor BD 675
ABS 301/1301	349 355 003	HIGH COM Module BS 5335
Position	Part No.	Designation
C 1	309 411 703	Al-electr. cap. 22 µF/6.3 V
C 2	309 410 634	Al-electr. cap. 4.7 µF/35 V
C 8/11/18	309 412 644	Al-electr. cap. 47 µF/16 V
C 15	309 410 655	Al-electr. cap. 2.2 µF/25 V
C 17/20	309 411 647	Al-electr. cap. 10 µF/16 V
C 19	339 580 114	Ta-electr. cap. 0.22 µF/35 V
C 22	309 413 486	Al-electr. cap. 100 µF/16 V
IC 1	339 575 019	IC U 401 B
IC 2	339 575 020	IC MC 14066 BCP
ABS 821	339 364 982	Output Amplifier Module BS 5355
Position	Part No.	Designation
C 1/2	309 410 643	Al-electr. cap. 2.2 µF/25 V
C 3	309 411 677	Al-electr. cap. 10 µF/25 V
IC 1	339 335 855	IC MC 1458 CP1
ABS 822	339 330 853	Universal Amplifier Module BS 5309
Position	Part No.	Designation
C 1/2	309 410 643	Al-electr. cap. 2.2 µF/25 V
C 3	309 411 677	Al-electr. cap. 10 µF/25 V
IC 1	339 335 855	IC MC 1458 CP1
ABS 801	349 355 002	Pre-Amplifier Module BS 5418
Position	Part No.	Designation
BU 801	339 540 057	DIN socket, 8 contacts
C 3	309 411 677	Al-electr. cap. 10 µF/25 V
C 303/1303	309 411 674	Al-electr. cap. 22 µF/16 V
C 306/1306	309 411 659	Al-electr. cap. 22 µF/25 V
C 308/1308	339 584 096	Al-electr. cap. 100 µF/3 V
C 313/1313	309 410 642	Al-electr. cap. 1 µF/50 V
C 314/1314	309 461 996	Ta-electr. cap. 0.47 µF/35 V
C 1312	309 414 695	Al-electr. cap. 470 µF/25 V
R 326/1326	309 509 735	variable resistor 25 KOhm
S 801	339 440 953	rec/play switch, complete
S 802	339 440 957	push button switch, 2-fold
T 1/2/302/1302	309 001 242	transistor BC 550 C
T 301/1301	309 001 211	transistor BC 550 B
T 303/304/305/	339 556 224	transistor BC 548 C
306/1303/1304/
1305
IC 504	309 368 105	IC 7818 UC 18 V
ABS 803	339 335 956	Function Selector Module BS 5348
Position	Part No.	Designation
C 370/376/	309 410 642	Al-electr. cap. 1 µF/50 V
1370/1376
C 371/377/	309 411 654	Al-electr. cap. 10 µF/35 V
1371
C 373	309 410 717	Al-electr. cap. 4.7 µF/63 V
C 374	309 411 656	Al-electr. cap. 22 µF/25 V
C 378	309 414 694	Al-electr. cap. 220 µF/25 V
D 310/312/317/	309 325 927	diode 1 N 4148
811/812/813/
1310
D 311	339 529 138	diode BZX 55 C 2 V 7
D 313/314/315	309 327 022	LED FLV 110 RT
D 316	339 529 105	LED FLV 310 GN
R 393/1393	309 509 401	variable resistor 10 KOhm
R 403	309 504 921	variable resistor 5 KOhm
S 810/813	339 440 954	toggle witch
S 811	339 440 955	toggle witch
S 812	339 440 956	toggle witch
T 310/1310	339 556 087	transistor BC 548 C
T 311	339 556 225	transistor NE 412 S
ABS 807	339 335 958	Motor Control Board Cpl. BS 5524
Position	Part No.	Designation
C 439	309 410 643	Al-electr. cap. 2.2 µF/25 V
D 3/4/5/6	309 325 951	diode 1 N 4001
IC 431/432	339 575 074	IC NE 532 N
MG 3	339 340 952	playback magnet
MG 4	339 340 953	lateral slide magnet
MG 5	339 340 954	brake magnet
R 449	309 509 047	variable resistor 2.5 Ohm
S 9,13	339 405 951	set of contact springs, 1-pol.
S 10	339 440 962	locking switch, complete
S 12	339 440 961	micro switch
ABS 809	349 355 018	Mechanism Control Module BS 5754
Position	Part No.	Designation
C 701	309 411 674	Al-electr. cap. 22 µF/16 V
C 702/719	309 411 645	Al-electr. cap. 10 µF/35 V
C 705/709/717/	309 410 642	Al-electr. cap. 1 µF/50 V
723/725/726
C 706/707/708	309 410 855	Al-electr. cap. 2.2 µF/50 V
C 716	309 410 668	Al-electr. cap. 4.7 µF/35 V
C 721	309 461 917	Ta-electr. cap. 10 µF/16 V
C 741/742	339 580 115	Ta-electr. cap. 0.68 µF/35 V
C 743	309 412 644	Ta-electr. cap. 47 µF/16 V
D 701-720/723/	309 325 927	Si-diode 1 N 4148 G
725-728/
731-734/
736-739/
742-754/
756-764/
766-769/
772/773
D 741	309 325 951	Si-diode 1 N 4001
D 755	339 525 003	Si-z-diode BZY 85 C 6 V 8
D 771	309 325 057	Si-z-diode BZY 85 C 4 V 7
IC 702/703/	309 368 144	IC MC 14001 CP
706/708/711
IC 704	339 575 070	IC MC 14011 CP
IC 707	339 575 071	IC MC 14043 BCP
T 701-704/706/	339 556 224	Si-transistor NPN BC 548 C
708/711/716/
718/719/721
T 707	309 001 114	Si-transistor NPN BC 675
T 709/714/717	339 556 079	Si-transistor NPN BD135/16
T 712	309 001 115	Si-transistor PNP BD 676
T 713	309 001 114	Si-transistor BD 675
ABS 808	339 330 955	Rewind Motor Control Board BS 5775
Position	Part No.	Designation
C 741/742	339 580 115	Ta-electr. cap. 0.68 µF/35 V
C 743	309 412 644	Al-electr. cap. 47 µF/16 V
D 781/782	309 325 927	Si-diode 1 N 4148
L 701/702	339 345 350	anti-interference choke
T 731/733/734	309 001 024	Si-transistor PNP BD 136/16
T 732/736/737	339 556 079	Si-transistor NPN BD 135/16
T 738	339 556 224	Si-transistor NPN BC 548 C
ABS 811	339 355 858	Push Button Board BS 5756
Position	Part No.	Designation
	339 335 953	push button lear, 6-fold
ABS 812	339 335 955	Heatsink
Position	Part No.	Designation
IC 502	339 575 072	IC C 7812 SPG, REG
		Miscellaneous
Position	Part No.	Designation
BU 803	339 540 091	headphones socket, complete
FU 1	309 627 912	fuse T 160 mA
FU 2	309 627 901	fuse T 315 mA
HSK 11	339 350 850	R/P head 'sendust'
J 1/2	339 370 951	level meter, yellow
LA 1/2	339 560 079	miniature bulb 12 V 60 mA
LA 3/4	309 621 971	miniature bulb 12 V 80 mA
LE 1	309 695 935	mains cable
LK 2	339 355 950	erasing head
M 1	339 300 954	capstan DC motor
M 2	339 300 951	DC motor
S 1	309 630 994	mains switch, 2 contacts
S 8	339 440 959	push switch memory, 1 contact
R 1/2	339 500 951	double potentionmeter, complete
TR 1	339 310 952	mains transformer EI 78 A

Available Documents

User's Manual
Service Manual/Schematics

Back to List

Tape Speed:	4.75 cm/s +/- 1 %
Frequency Range:	30-18000 Hz (CrO2)
	30-16000 Hz (Fe2O3)
	30-18000 Hz (FeCr)
	30-18000 Hz (Metal)
Variation of Speed:	+/- 0.14 % (REC+PLAY)
	+/- 0.1 % (only PLAY)
Distortion Factor	<= 3 % (CrO2)
	<= 1 % (Fe, FeCr)
S/N Ratio with HIGH COM:	78 dB
Erase Damping:	>= 66 dB
Erase Frequency:	86kHz
Reduction of max. High Frequency Level at 10 KHz:	<= 12 dB (CrO2)
	<= 12 dB (Fe2O3)
	<= 10 dB (FeCr)
	<= 5 dB (Metal)
L/R Channel Damping:	>= 35 dB
Input Sensitivity:	<= 0.1 mV / kOhm
Input Impedance:	6 kOhm Radio/Micro
	470 kOhm Aux
	220 kOhm Line
Output Voltage:	1.2 V
Output Resistance:	10 kOhm Radio
	8.2 kOhm Monitor/Line
	270 Ohm Headphome
Playback Deemphasis:	3180 µs / 70 µs (CrO2)
	3180 µs / 120 µs (Fe2O3)
	3180 µs / 120 µs (FeCr)
	3180 µs / 70 µs (Metal)
Multiplex Filter:	19 kHz Pilot Tone Suppression switchable
Record Level Supervision	switchable
(Limiter)
Semiconductors:	19 Integrated Circuits
	57 Transistors (among them 2 FETs)
	79 Diodes
	6 Zener Diodes
	2 Rectifiers
	10 LEDs
Mains Voltage:	220/110 Volts
Frequency:	50/60 Hz
Dimensions:	460 x 142 x 346 mm
