My Telefunken Collection

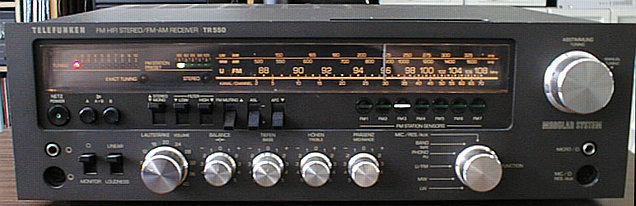

TR 550

Device Type

Analog Receiver

Start of Sale

1979

General Description

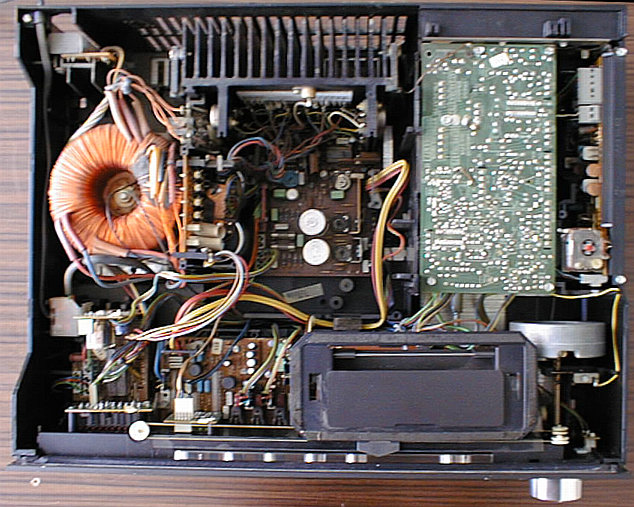

The TR 550 was the 'luxury class' receiver at that time. It offers most of the functions and features one could expect at that time, like preprogrammed stations with sensor selection or a presence control. In many ways, this receiver is similar to the HR 5500. Telefunken usually built two variants of a receiver at that time: The 'European Line' with black, wide, rounded plastic cases, similar to the receivers built into the earlier 70s, and the 'International Line' with 19-inch wide metal cases. The TR 550 could be regarded as the 'international version' of the HR 5500, however without the digital frequency display and the short wave range. The TR 550 uses the same chassis frame as most other Tuners, Amplifiers, and Receivers of that series, however now the housing is finally full...

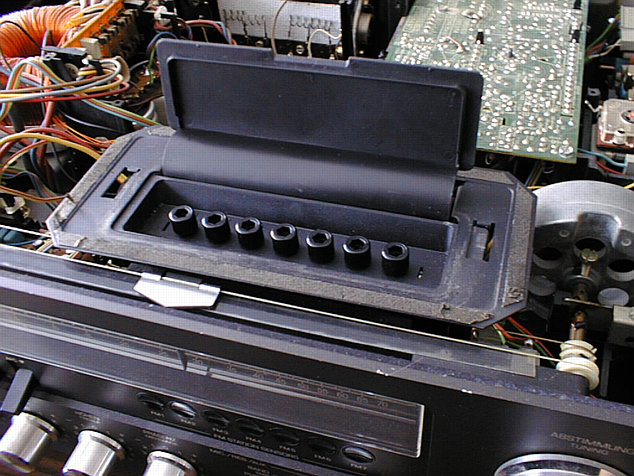

The potentiometers to select the stations for the FM station sensors are located on the TR 550's top, covered by a lid. This makes changing the stations a bit uncomfortable when the device is located in a rack. Futhermore, the frequency display for these pots is only a chain of 5 LEDs, so tuning typically means to select the station with the main tuning knob and dial, and then turn the pot until you hear the same music...

Features

Connectors

AM antenna, FM antenna (coaxial and symmetric), Phono (DIN and Cinch), Tape (DIN and Cinch), monitor (DIN), Aux (DIN and Cinch), ground clamp, 2xspeaker (DIN), headphone (DIN and 6.3mm), microphone (DIN and 6.3mm)

Technical Data

(taken from the service manual)

Wave Ranges:	FM = 87.6 ... 108 MHz
	plus seven station sensors
	MW = 518 ... 1620 kHz
	(579 ... 185 m)
	LW = 148 ... 320 kHz
	(2027 ... 937 m)
Circuits:	FM = 11, of which 4 are tunable
	AM = 6, of which 2 are tunable
Sensitivity:	FM <= 0.6 µV Mono / <= 2 µV Stereo
	(S/N = 26 dB, 60 Ohm)
	MW = 10 µV at 600 kHz
	LW = 20 µV at 162 kHz
	(1 kHz, 30% modulation)
Intermediate Frequency:	AM 460 kHz / FM 10.7 MHz
Nominal Output Power:	2 x 90 W RMS (4 Ohms)
Peak Output Power:	2 x 130 W (4 Ohms)
Distortion Factor:	<= 0.025% at 1 kHz (70 W / 4 Ohms) typical
	<= 0.15% at 90 W / 4 Ohms, 10-16000 Hz
Nominal Input Voltages/	175 mV / 470 kOhms / 31 dB (tape)
Nom. Input Impedance/	180 mV / 4.7 MOhms / 31 dB (aux)
Overdrive Stability:	218 mV / approx. 40 kOhms / 36 dB (monitor)
	2 mV / 47 kOhm / 31 dB (phono)
	1.8 mV / 47 kOhm / 31 dB (micro)
Semiconductors:	19 Integrated Circuits
	36 Transistors
	43 Diodes
	17 LEDs
Mains Voltage:	220/110 Volts AC at 50/60 Hz
Fuses:	Mains 220 V 1 x T 2.5 A
	110 V 2 x T 2.5 A
	Secondary 4 x T 4 A (output stages),
	T 1 A / T 500 mA
Dimensions:	460 x 145 x 350 mm

Common Failures

None known so far, but since the TR 550 uses the same Hifi Chassiss 2000 for the power amp section as e.g. the TA 750, similar cautions apply...

Spare Part Numbers

(taken from the service manual)

		Cabinet Parts
Position	Order No.	Designation
501	309 796 044	cabinet, brown
502	309 796 041	cabinet, silver
503	309 710 212	flood light dial for brown
504	309 710 213	flood light dial for silver
505	309 833 492	cover for dial (plexiglas)
506	309 822 902	luminescent cap
507	309 833 537	mask for brown
508	309 833 538	mask for silver
509	309 833 539	front mask for brown
510	309 833 540	front mask for silver
511	309 831 712	light box for brown
512	309 831 710	light box for silver
513	309 833 541	flap for FM station sensors for brown
514	309 833 348	flap for FM station sensors for silver
515	309 833 534	cover for fuse
516	309 770 920	cabinet foot
517	309 833 535	button cover
518	309 833 536	button cover
519	309 809 952	toggle switch knob for brown
520	309 809 951	toggle switch knob for silver
521	309 802 114	tuning knob
522	309 802 115	control knob for range
523	309 802 166	control knob for volume
524	309 802 113	control knob for treble, bass,
		balance, and presence
525	309 802 095	knob with shaft for FM stations sensor
526	309 802 090	knob for speaker switch over
527	309 802 126	control knob (pluggable) for treble,
		bass, balance, and presence
		Electrical Parts
Position	Order No.	Designation
BS 5105	309 369 957	sensor board for main tuning
BS 5106	349 364 967	AM board
BS 5607	349 364 976	FM board with sensor board, main
		tuning, exact tuning
BS 5317	349 362 998	AF switch board
BS 5352	349 654 944	AF control board with presence
		control board
BS 5343	349 369 989	range rotary switch board
BS 5354	349 654 940	presence control board
BS 5409	309 369 964	relay board
BS 5419	349 364 974	AF power amplifier board
BS 5508	309 653 943	fuse board
BS 5529	309 310 141	mains transformer with fuse board
BS 5603	349 350 926	FM mixing unit
BS 5714	309 395 993	exact tuning board
BS 5730	349 395 022	LED indication for field strength
BS 5732	309 395 019	LED type of operation display
BS 5745	349 388 014	FM stations sensor for brown
BS 5768	349 388 013	FM stations sensor for silver
BS 5772	309 651 972	sockets board for speaker
BS 5773	309 369 988	speaker switch board
528	309 672 919	microphone socket
FU 1	309 627 911	fuse T 3.15 A
LA 1	309 621 960	dial lamp 6-7 V / 30 mA
529	309 621 963	miniature lamp 12 V / 40 mA / 0.48 W
530	309 630 994	mains switch, 2 contacts
531	309 601 701	FM antenna
532	309 603 807	AM antenna
		Sensor Board
Position	Order No.	Designation
BS 5105	309 369 957	sensor board for main tuning
533	309 651 975	sockets bar, 7 contacts
D 705/706	309 325 027	diode 1 N 4148
T 707	339 556 191	transistor BC 318 B
T 708	309 001 956	transistor BC 237 B
		AM Module
Position	Order No.	Designation
BS 5106	349 364 967	AM board
BU 201	309 670 923	AM antanna socket
C 171/179	309 411 673	Al-electr. cap. 22 µF / 10 V
C 182	309 412 645	Al-electr. cap. 47 µF / 25 V
C 204	309 450 605	disc trimmer N 750 10/40/250 V
C 212/213,R 205	309 400 966	tuning capacitor
C 219	309 450 807	disc trimmer N 470 4/20/250 V
C 230	309 410 634	Al-electr. cap. 4.7 µF / 25 V
D 201/205/206/207/208	309 325 080	diode BA 244 spez.
D 210/211/213	309 325 027	diode 1 N 4148
FI 170	309 111 802	band filter
FI 171	309 220 031	IF filter coil 2
FI 172/173	309 220 069	ceramic resonator 460 kHz
IC 170	309 368 133	IC TDA 1046
L 203	309 250 930	RF choke
L 204	309 208 911	pre-circuit coil LW
L 205	309 207 922	pre-circuit coil MW
L 206	309 249 098	filter coil
L 209/211	309 218 922	oscillator coil
T 201	309 001 227	transistor BF 256 B
		FM Module
Position	Order No.	Designation
BS 5607	349 364 976	FM board with sensor board, main
		tuning, exact tuning
BS 5714	309 395 993	exact tuning board
535	309 670 927	FM antenna socket
C 109/135	309 413 485	Al-electr. cap. 100 µF / 25 V
C 114	309 411 654	Al-electr. cap. 10 µF / 16 V
C 116/124	309 411 704	Al-electr. cap. 4.7 µF / 16 V
C 117	339 584 062	Al-electr. cap. 100 µF / 3 V
C 119	309 410 634	Al-electr. cap. 4.7 µF / 25 V
C 125	309 410 688	Al-electr. cap. 1 µF / 25 V
C 127	309 461 992	Ta-electr. cap. 2.2 µF / 16 V
D 101/102/103/104/105	309 325 027	diode 1 N 4148
D 106/107	309 324 611	diode AA 139
FI 101	309 103 952	ceramic filter 10.7 MHz
FI 301/1301	309 103 948	ceramic filter 19 kHz / 38 kHz
IC 101	309 368 042	IC L 103 T 1
IC 102	309 368 014	IC TL 1723 C
IC 103	309 368 172	IC CA 3189 E
IC 104	309 368 173	IC TCA 4500 A
L 101	309 259 934	RF choke
L 102	309 249 077	choke coil
L 103	309 249 124	filter coil 10.7 MHz
L 615	309 259 919	choke
R 103/157	309 500 071	variable resistor 5 K 1 0.15 W
R 109	309 504 995	variable resistor 50 K 1 0.15 W
R 134/139	309 500 059	variable resistor 10 K 1 0.15 W
R 149	309 500 635	variable resistor 10 K 1 0.15 W
SB 1	309 900 236	plug bridge
T 101/102/103/104/107/108	309 001 248	transistor BC 308 B
T 105/106/709/710	339 556 191	transistor BC 318 B
		AF Switch Module
Position	Order No.	Designation
BS 5317	349 362 998	AF switch board
C 303/304	309 410 634	Al-electr. cap. 4.7 µF / 25 V
C 305/310/312	309 411 673	Al-electr. cap. 10 µF / 25 V
C 311/313/318/319	309 410 728	Al-electr. cap. 4.7 µF / 40 V
L 301/302	309 249 082	filter coil
R 301	309 549 637	resistor combination
S 301/303	309 639 971	toggle switch 4 x UM
S 302	309 639 980	toggle switch 2 x UM
S 304/305/306	309 639 972	toggle switch 1 x UM
T 301/302	309 001 224	transistor BC 559 B
T 303/304	309 001 211	transistor BC 550 B
		AF Control Board
Position	Order No.	Designation
BS 5352	349 654 944	AF control board with presence
		control board
BS 5354	349 654 940	presence control board
C 315	309 412 608	Al-electr. cap. 47 µF / 25 V
C 318	309 412 655	Al-electr. cap. 47 µF / 50 V
C 319/323/324/325/326	309 412 644	Al-electr. cap. 47 µF / 16 V
C 320	309 410 634	Al-electr. cap. 4.7 µF / 35 V
IC 301/302	309 368 212	IC HA 1457
L 380/381	309 249 083	filter coil
R 316	309 511 068	variable resistor 2 x 100 KOhm - volume
R 344	309 511 069	variable resistor 2 x 25 KOhm - balance
R 354	309 511 070	variable resistor 2 x 100 KOhm - bass
R 373	309 511 071	variable resistor 2 x 100 KOhm - treble
R 382/386	309 501 953	variable resistor 2 x 100 KOhm - presence
S 301	309 639 971	toggle switch 4 x UM
S 302	309 639 977	toggle switch 5 x UM
		Range Rotary Switch Module
Position	Order No.	Designation
BS 5343	349 369 989	range rotary switch board
BU 301/303/304/1301/1303/	309 679 503	cinch socket
1304
BU 302	309 672 801	DIN socket, 5 contacts
C 302/309/1302/1309	309 410 738	Al-electr. cap. 4.7 µF / 40 V
C 308/1308	309 412 645	Al-electr. cap. 47 µF / 25 V
C 314/1314	309 414 794	Al-electr. cap. 100 µF / 35 V
C 501	309 412 655	Al-electr. cap. 47 µF / 35 V
C 502	309 413 485	Al-electr. cap. 100 µF / 25 V
C 505	309 410 717	Al-electr. cap. 4.7 µF / 63 V
D 501/502/503	309 325 027	diode 1 N 4148
IC 301/1301	309 368 212	IC HA 1457
L 301/1301	309 249 053	RF choke
S 301	309 639 005	rotary switch, 6 positions
T 502	339 556 222	transistor BC 547 B

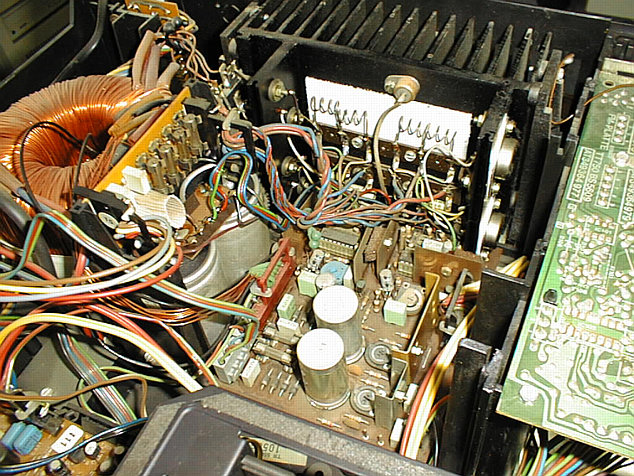

		AF Power Amplifier Module
Position	Order No.	Designation
BS 5419	349 364 974	AF power amplifier board
C 403/404	309 411 703	Al-electr. cap. 22 µF / 6.3 V
C 421/422	309 410 733	Al-electr. cap. 2.2 µF / 6.3 V
C 501	309 413 485	Al-electr. cap. 100 µF / 25 V
C 505	309 414 737	Al-electr. cap. 2200 µF / 40 V
C 506	309 414 766	Al-electr. cap. 1000 µF / 63 V
D 401/402/403/404	309 325 027	diode 1 N 4148
D 501	309 325 105	diode BZY 55 C 16
D 503/504/505/506/507/	309 325 953	diode 1 N 4003
508/509/510
FU 501	309 627 919	fuse T 1 A
FU 502	309 627 913	fuse T 500 mA
IC 401/402	309 368 174	IC LM 391 N 90
IC 501/502	309 368 130	IC UA 78 GU 1 C
R 411/412	309 504 802	variable resistor S 2.5 K/1/0.15 W
R 429/430	309 504 924	variable resistor S 2.5 K/1/0.07 W
R 507/510	309 504 402	variable resistor S 1 K/1/0.15 W
T 1/3	309 001 249	transistor BD 311 N
T 2/4	309 001 250	transistor BD 312 N
T 401/402	309 001 047	transistor BF 254
T 403/404	309 001 223	transistor BD 237
T 405/406	309 001 234	transistor BD 238
T 407/408	309 001 255	transistor BC 557 B
T 409	339 556 222	transistor BC 547 B
		FM Mixing Unit
Position	Order No.	Designation
BS 5603	349 350 926	FM mixing unit
C 602/604/605/606	309 453 810	foil trimmer 1.4 6
C 616	309 452 813	tube trimmer 6 P 1.4 P
D 601/603	309 325 081	diode BB 204 green
D 602/605	309 325 074	diode BB 204 blue
L 601/602	309 209 925	antenna coil
L 603/604	309 249 125	IF filter coil 1
L 605	309 249 127	IF filter coil 2
L 606	309 220 039	filter coil 10.7 MHz
L 607/608	309 249 126	filter coil 2 10.7 MHz
L 609	309 219 932	oscillator coil
L 610	309 259 933	RF choke
T 601	309 001 254	transistor BF 256 B 3
T 602	309 001 243	transistor BF 256 B 2
T 603	309 001 238	transistor BF 441
		LED Indication
Position	Order No.	Designation
BS 5730	349 395 022	LED indication for field strength
	309 900 292	diode holder, 12-fold
D 701-710	309 327 053	LED CQY 85 red
D 711	309 327 022	LED FLV 110 red
IC 701	309 368 231	IC U 254 B
IC 702	309 368 230	IC U 244 B
		LED Type of Operation Display
Position	Order No.	Designation
BS 5732	309 395 019	LED type of operation display
	309 900 293	socket for diode
D 701-705	309 327 038	LED V 164 P green
D 706	309 327 022	LED FLV 110 red
IC 701	309 368 230	IC U 244 B
		Speaker Switch Board
Position	Order No.	Designation
BS 5409	309 369 964	relay board
BS 5773	309 369 988	speaker switch board
536	309 671 963	speaker socket, 4-fold
C 701	309 414 768	Al-electr. cap. 220 µF / 3 V
D 701	309 325 927	diode 1 N 4148
IC 701	309 368 206	IC NE 555 N-H
RS 701	309 636 933	relay
S 401/402	309 640 986	chamber switch, 12 contacts
T 701/702	309 001 143	transistor BC 237 B
537	309 382 025	push button assembly, 2-fold
538	309 981 716	reversing spring for push button assembly
BU 407/408	309 671 961	headphone socket board
		Mechanical Parts
Position	Order No.	Designation
539	309 863 988	frame chassis
540	309 926 715	cord roller B 10
541	309 926 972	cord disc
542	309 928 903	clutch
542a	309 943 016	drive shaft
543	309 927 912	flywheel
544	309 926 808	tension roller
545	309 981 802	spring for tension roller
546	309 870 925	dial cord
547	309 823 013	pointer
548	309 921 913	switch rod with button black
549	309 930 936	support for tuning capacitor
550	309 689 904	IC socket, 16 contacts
551	339 566 049	bulb holder
552	309 653 501	fuse holder
553	309 900 294	sensor holder
	309 921 920	switch rod with button for silver

Available Documentss

• Service Manual

Back to List
